HDPE Duct Chambers

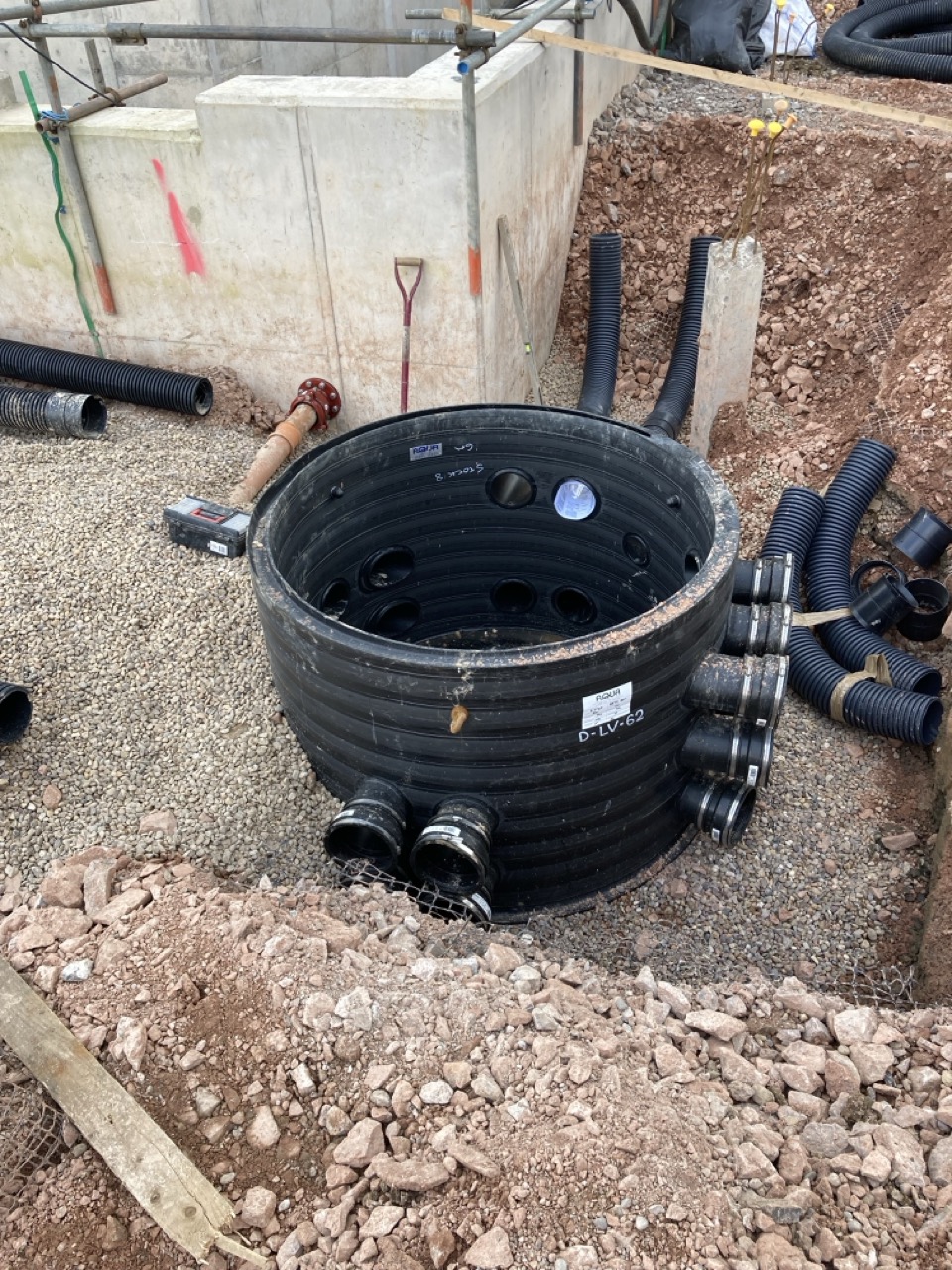

Manufactured from High Density Polyethylene (HDPE) our Prefabricated HDPE Circular Duct Chambers are an excellent option for a quick and easy installation on site.

Having the benefit of the Chamber being fully manufactured in our facility including spigot connections for all duct entries. Site only need to lift the Chamber in the ground (using pre-installed lifting points) and connect the relevant ductwork.

Circular Duct Chambers are supplied with the following;

• Standard HDPE Base (Anti-flotation Base can be provided as an alternative if required).
• Extrusion welded stubs (Spigots, plain ended) to connect site ductwork.
• GRP H-Beam (Removable) for lid support if required.
• GRP Solid Cover with HDPE surround.

Our HDPE Duct Chambers can be manufactured to any depth (up to 6m) and we have a large range of diameters starting from 400mm ID upwards.
