Funke HS Pipe

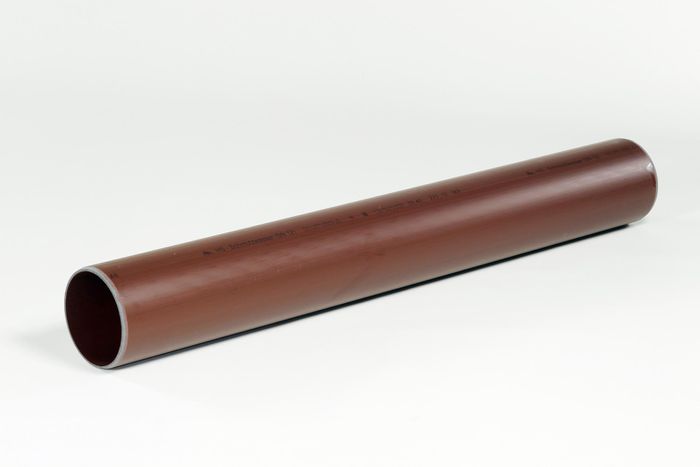

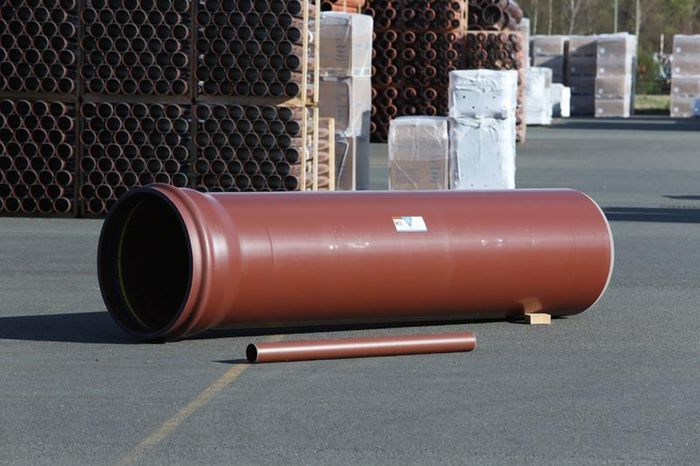

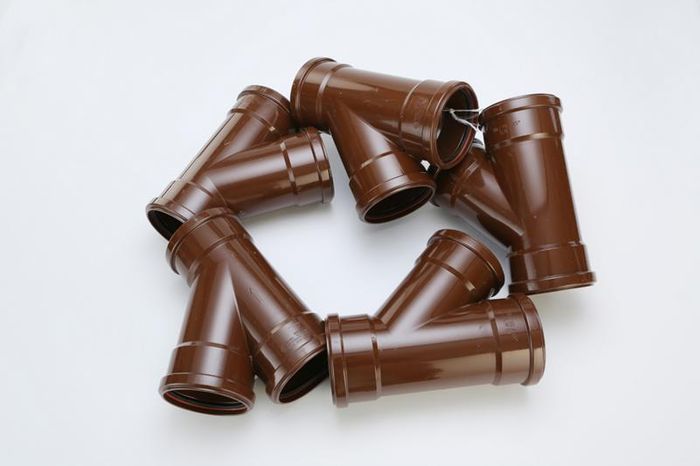

The HS® drainage pipes system provides the user with a complete system which has excellent technical properties and is available from DN/OD 110 to DN/OD 800. Not only the pipes and moulded parts make this modern drainage pipe system what it is, but special components such as the VARIO coupler, the Demarcation and Control Chamber, a level invert lateral connection, a cleanout opening and diverse bends and branches also contribute to the strong performance and diversity of use of this modern pipe system. The pipes are wall-reinforced solid wall PVC-U pipes in the colour brown. They are manufactured as plain-ended pipes with chamfered spigots in DN/OD 110 – 315 and as single socket pipes in sizes DN/OD 400 – 800. The pipes are available in lengths of 1.5 m, 3 m and 5 m. The moulded parts with a firmly inserted FE® seal are able to withstand heavy loads and can be used with coverings of between 0.5 m and 6 m for traffic loads of max, HA 20. The measured ring stiffness amounts to ≥ 12 respectively 16 kN/m². All of the moulded parts (SDR 34) are so constructed that they do not form any steps on the interior. The use of the double socketed fittings enables the drainage pipe system to be installed fast and flexibly.
